Features
- Diameter: 12 mm
- Length: 156,5 mm
- Universal port: 2.5 mm
- Private labelling is available at no extra cost
- Minimum order quantity applies

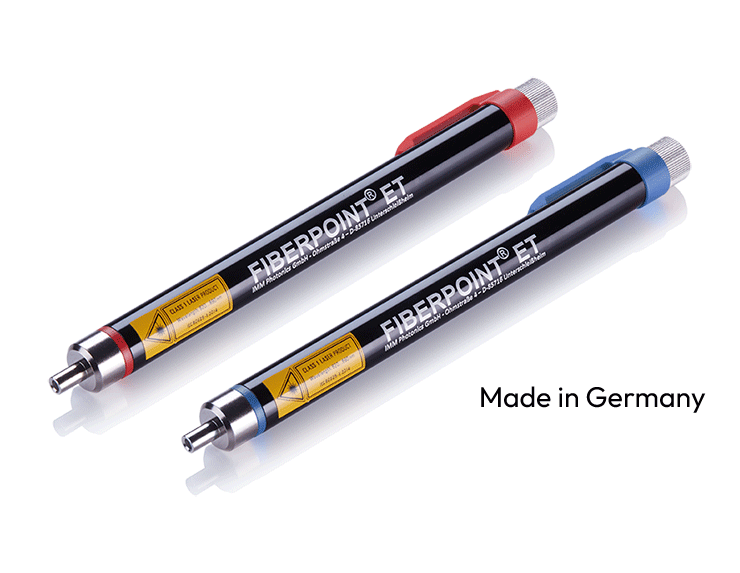

FIBERPOINT® ET
Visual Fault Locator Fiberpoint
FIBERPOINT® ET (red light source)
The compact design of the FIBERPOINT® ET fiber optic cable tester is ideal for everyday use for all fiber optic applications, such as in the field, in industrial settings and in the laboratory. In addition to the version powered by standard AAA batteries, the tester is also available in a version that can be powered by single-use or rechargeable batteries.
Applications
- To check singlemode/multimode optical fibers and other fiber optic components on faults
- Patching of fibers
- Continuity check up to:
~ 5.5 km (FIBERPOINT® ET)
~ 3 km (FIBERPOINT® ET G)
Technical data
| Parameter | Min. / Typ. / Max. |
| Wavelength | 650 nm / 658 nm / 665 nm |
| Operation temperature | – 10 °C / – / 45 °C |
| Storage temperature | – 40 °C / – / 70 °C |
| Fiber coupled power: Singlemode fiber 9/125 μm | 200 µW / 300 µW / 390 µW |
| Fiber coupled power: Multimode fiber 50/125μm | 200 µW / 300 µW / 390 µW |
| Optical output power | < 400 µW |
| Retention force for ferrule | 1 – 2 N |
Downloads
